Xencelabs Pen Tablet Small

Pen Pressure Sensitivity

Pen-and-Paper Feel

Ergonomic Design

Two Pens Included

Easy To Use Driver

Applications

16:9 Drawing Area

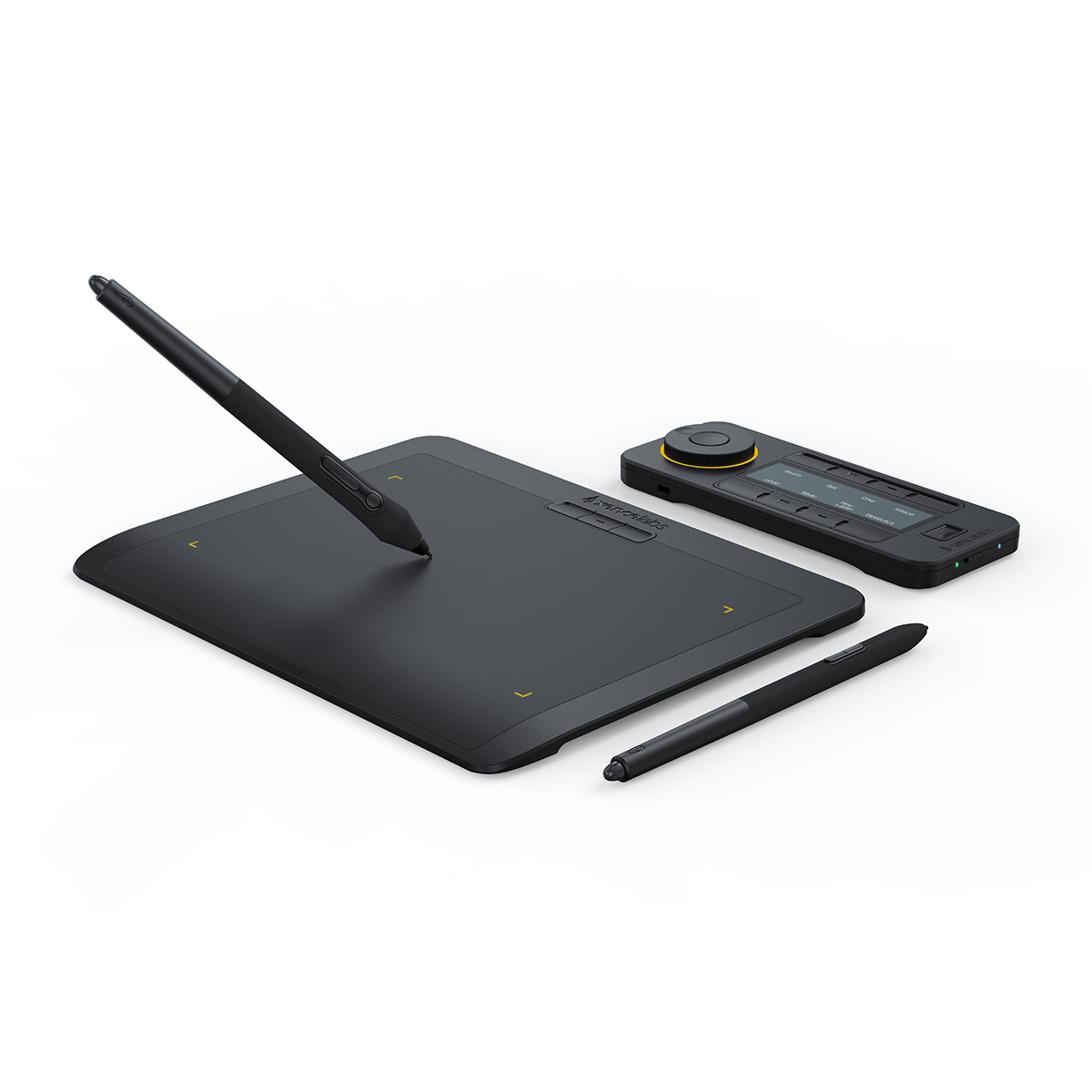

Compact and portable, the Pen Tablet Small is ideal for creatives on the go and those with limited desk space. With an active area of 6.93X3.89 inches, adjustable LED lights to define the drawing area, and two different sized pens, the Pen Tablet Small provides creatives with all the functionality and accessories they need for their workflow.

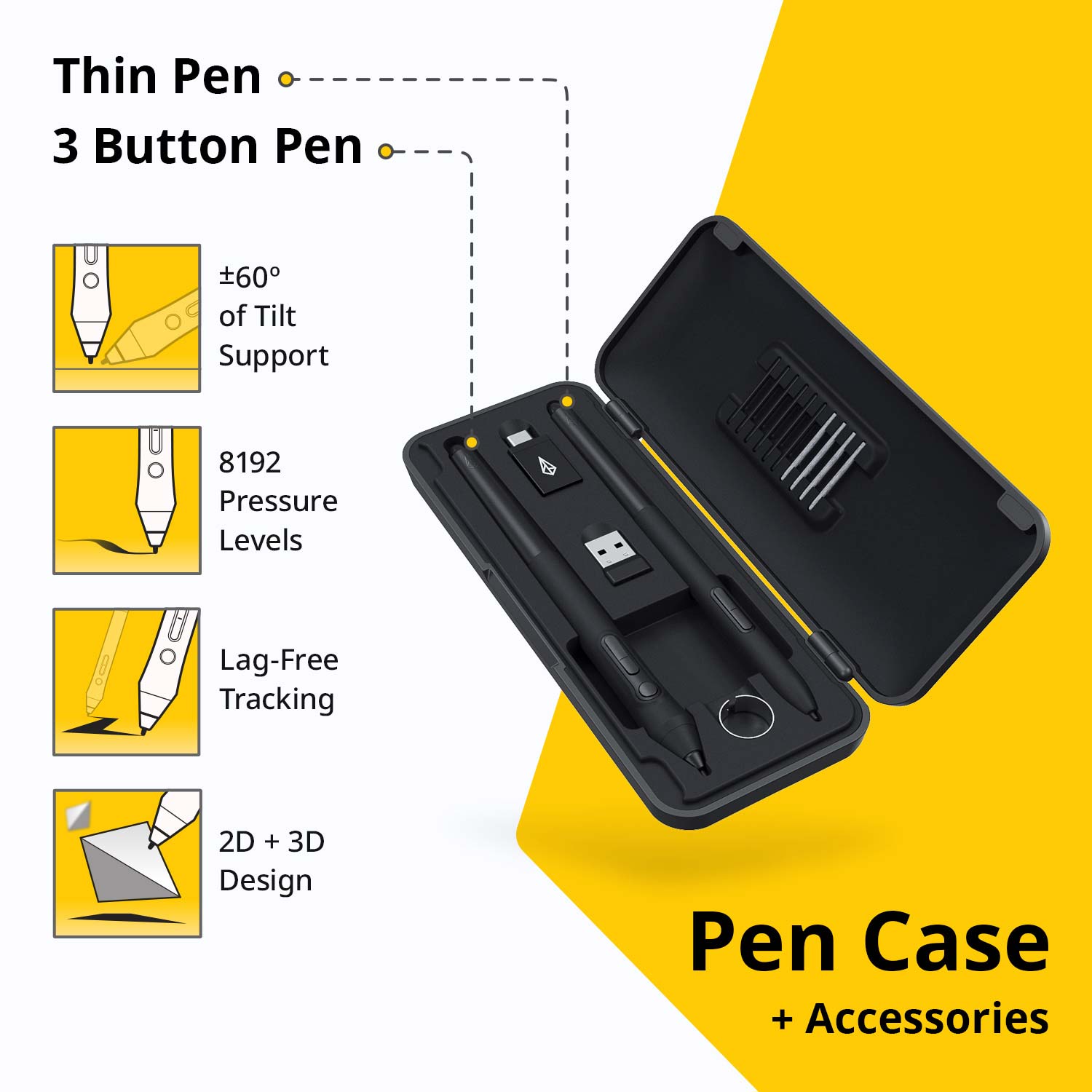

Two different sized pens come standard with our tablet, both fully customizable to your workflow. The wider barreled, 3 Button Pen has three programmable buttons + eraser to transform this pen into your fully customized tool. The smaller barreled, Thin Pen handles like your favorite pen or pencil and has two assignable buttons + eraser.

The tablet features a seamless and gently curved palm rest to maximize comfort, as well as adjustable LED lights, which help define the active drawing area. The smaller footprint of this pen tablet is optimal for creating graphics layouts, or when editing involves control points, transformation handles or filters. With a drawing surface aspect ratio of  16:9 native, the active area maps exactly to most industry-standard monitors out of the box. The Pen Tablet Small ships with a protective carrying case for your tablet, your accessories including the USB cable, a drawing glove, and the pen case that contains both digital pens, a dongle, adapter, nibs, and nib extractor.

Specifications

Overview

Model number

BPH0812W-A

Product SKU

XMCTSSFRESN

Color

Black

Warranty

24 months

Cable

USB-C cable (L)

Certifications

CE/WEEE/FCC/CQC/KC/TELEC/EAC/RCM/RoHS/ UKCA/WERCS/NOM/California65/CB/SRRC/FAC/ NBTC/EMC/NCC/BSMI/SDPPI/NTC/IMDA/ SIRIM/SDPPI

System requirements

Windows 11 ARM, Windows 7 or later, Mac OS X 10.13 or later, Linux; wireless or cable connection requires USB Type-A port (includes Type-C adapter).

Pen Tablet

Model number

BPH0812W-A

Dimensions (W x H x D)

9.21 x 7.27 x 0.3 in / 234.18 x 184.66 x 8 mm

Active area size

6.93 x 3.89 in /176.10 x 99.05 mm

Active area aspect ratio

16:9

Weight

398 g

Hours per charge

16 hours (2.5 hours charging time)

Ports included

USB-C

Security slot

Kensington Nano Security Slot™

Connectivity

Wireless or USB

Technology

Battery-free EMR (Electro-Magnetic Resonance)

Battery-free Pens

Pen models

PH25 (3 Button Pen) / PH6-A (Thin Pen)

Pen buttons

3 Button Pen: 3 buttons + eraser / Thin Pen: 2 buttons + eraser

Pressure levels

8192 levels (both pens)

Pen tilt range

60 degree (both pens)

Pen grip material

Soft touch silicone

Pen size

3 Button Pen: 157.56 x Φ14.73 mm / Thin Pen: 157.54 x Φ9.5 mm

Pen weight

3 Button Pen: 17 g  / Thin Pen: 12 g
