Xencelabs Pen Display 24

Studio Quality Drawing Experience

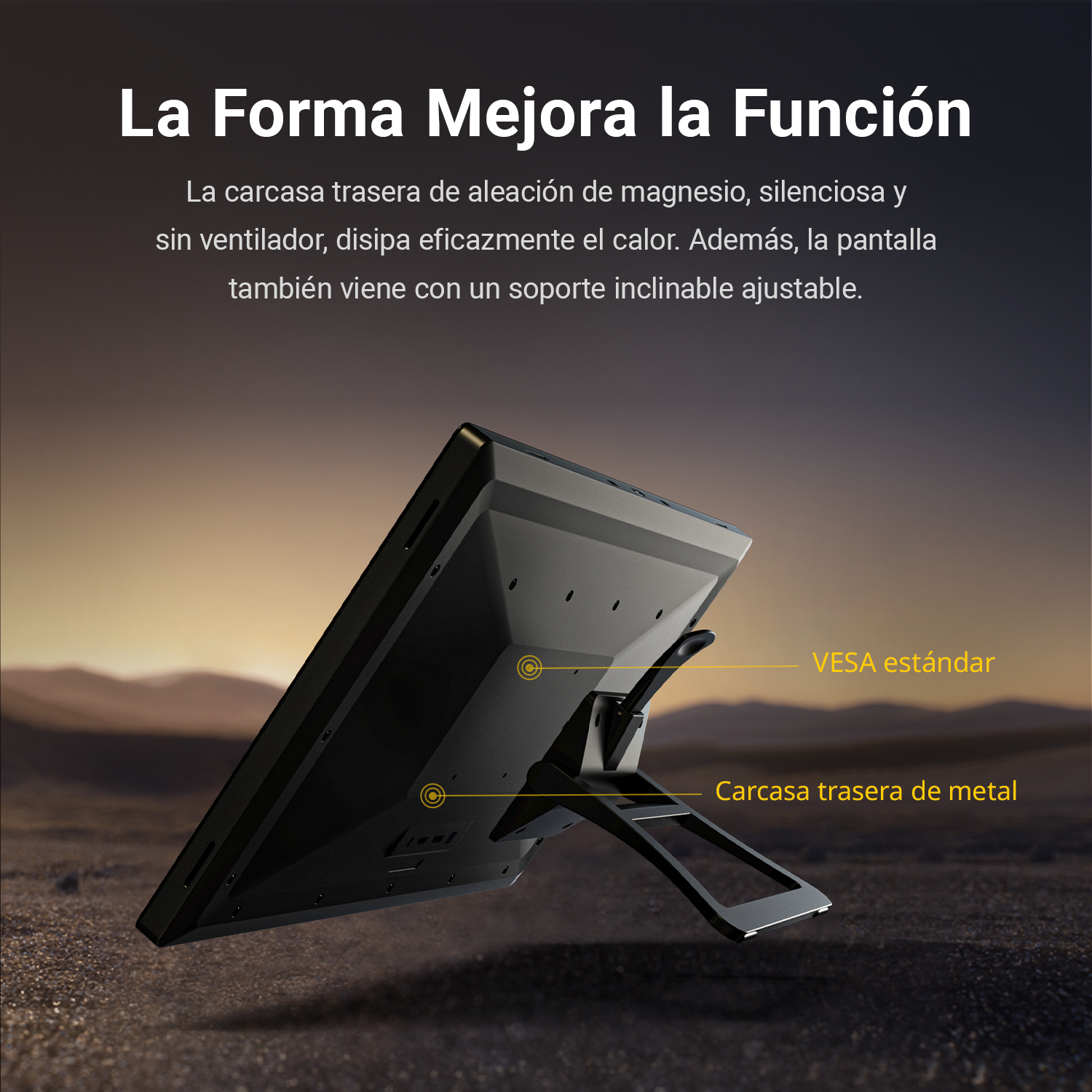

Silence is Golden

The high-quality metal (Magnesium alloy) and fanless back housing provides a thin design and silent heat dissipation.

3g Initial Activation

3g initial activation senses even the lightest hand, allowing for delicate strokes or strong, bold lines.

Finely Tuned Pressure Curves

The pressure curves have been meticulously tuned to be more responsive, thanks to a panel of artists who provided pressure data. Pen response is adjustable to match your drawing style.

Silence is Golden

The high-quality metal (Magnesium alloy) and fanless back housing provides a thin design and silent heat dissipation.

3g Initial Activation

3g initial activation senses even the lightest hand, allowing for delicate strokes or strong, bold lines.

Stunning Image Quality

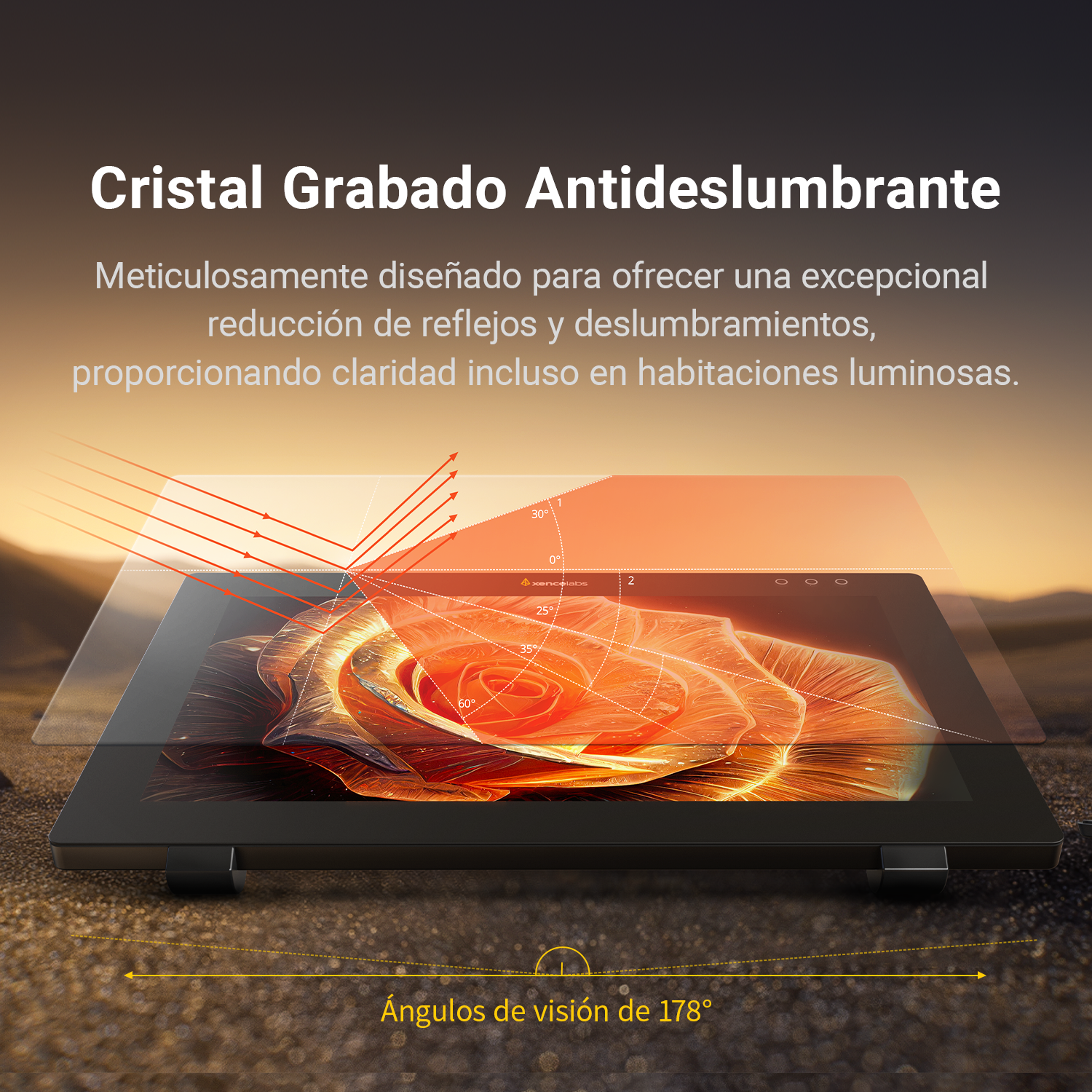

Exceptional Glare Reduction

Xencelabs' Super AG Etching Display provides an etched texture for the right amount of friction, giving a pen-and-paper feel. It also has exceptional glare reduction, reducing distracting glare and giving superior clarity in brightly lit environments or rooms with overhead ceiling lights.

Brilliant Color

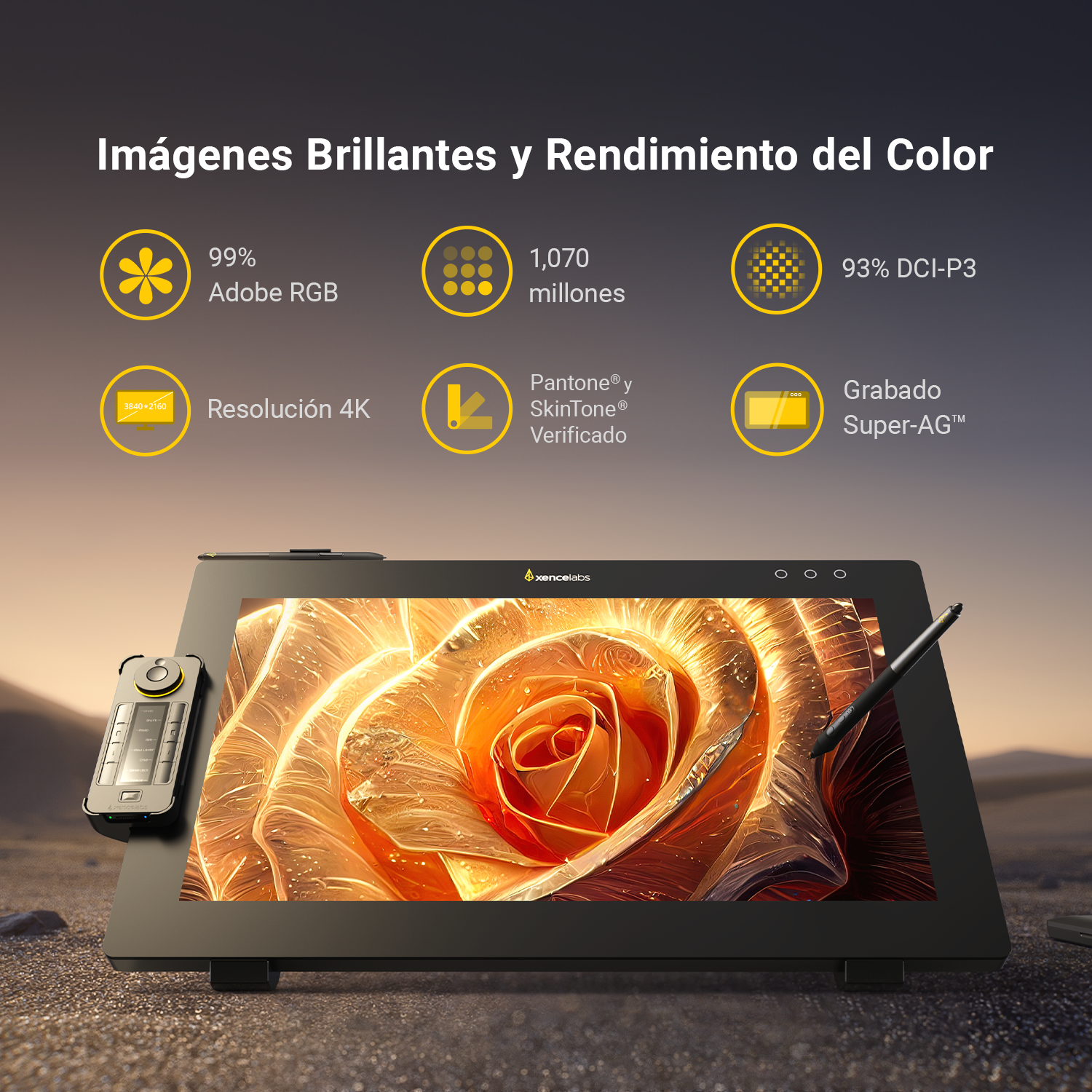

The screen brilliantly delivers 1.07 colors with 93% coverage of DCI-P3, 99% coverage of Adobe RGB, and Pantone and SkinTone validation.

Optically Bonded

The screen is optically bonded, eliminating parallax (or perceived visual gap between the pen nib and the cursor) and producing a bright, clear image.

Exceptional Glare Reduction

Brilliant Color

The screen brilliantly delivers 1.07 colors with 93% coverage of DCI-P3, 99% coverage of Adobe RGB, and Pantone and SkinTone validation.

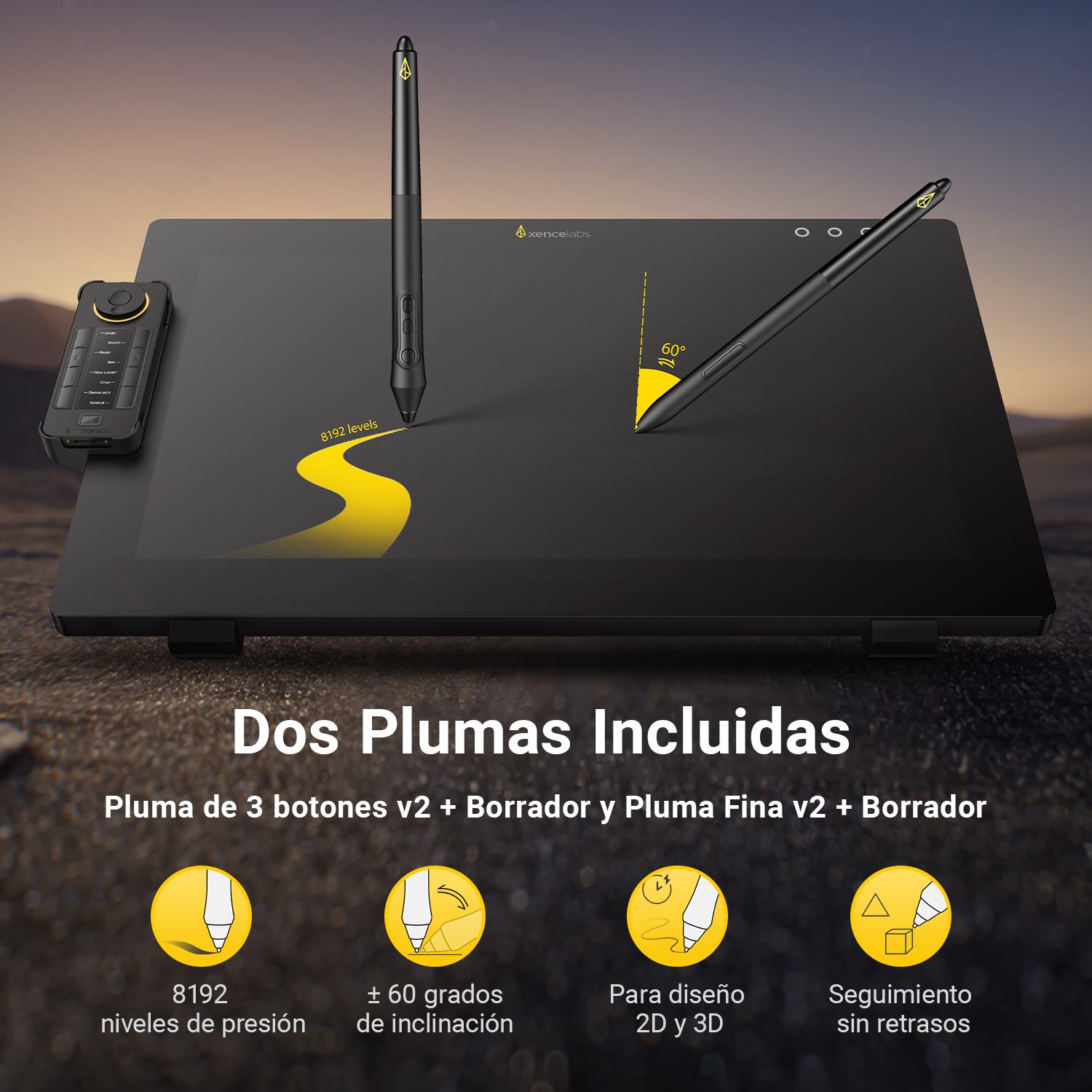

Two Battery-free Pens

Quick Keys

Tilt Stand Included

Multi-Axis Stand

Adaptable to Artist Preferences

What's in the Box

2 Digital Pens, Settings Panel, Quick Shortcut with OLED Display, Physical Dial, Clip, Tilt-Stand, Quick Keys Device, Xencelabs Tilt Stand

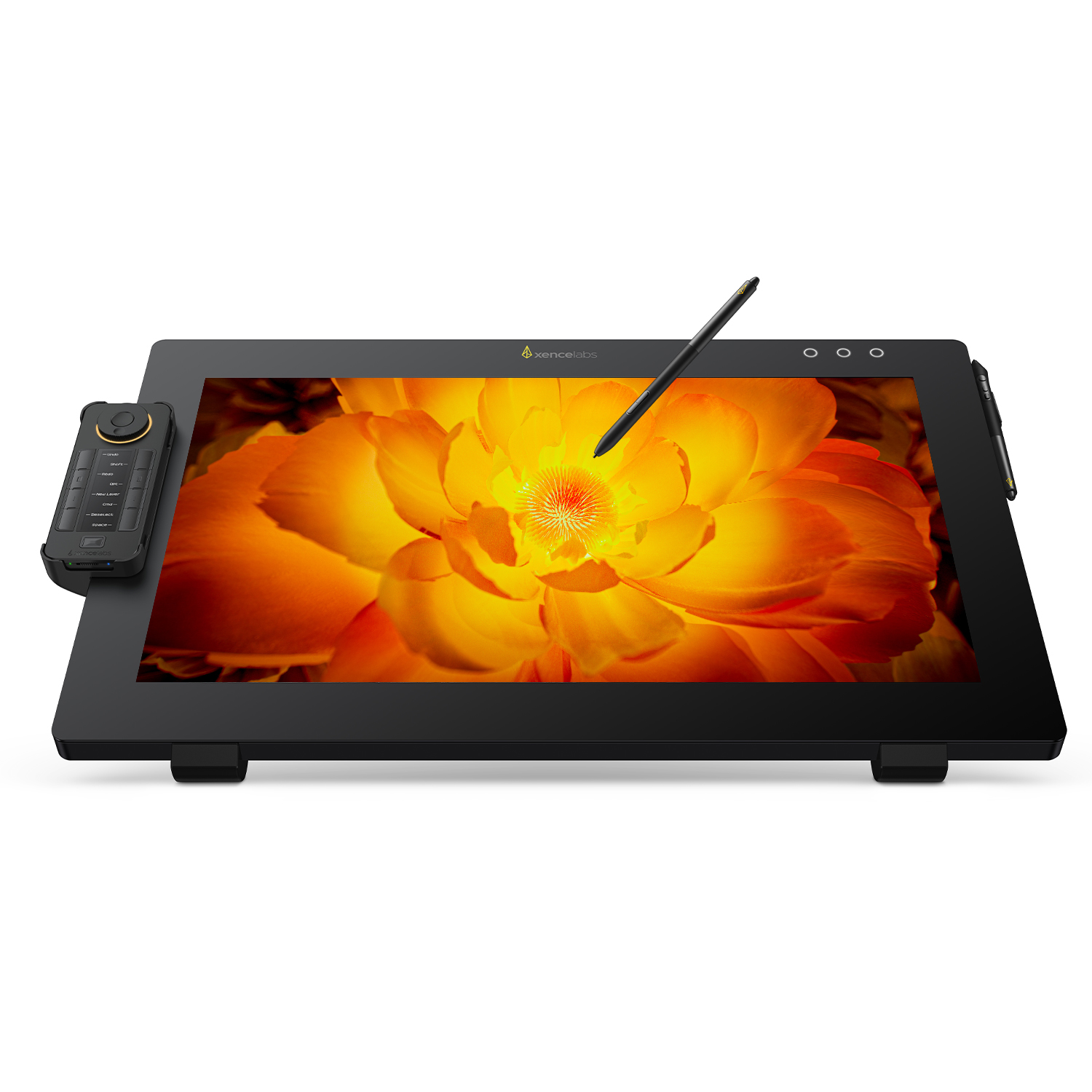

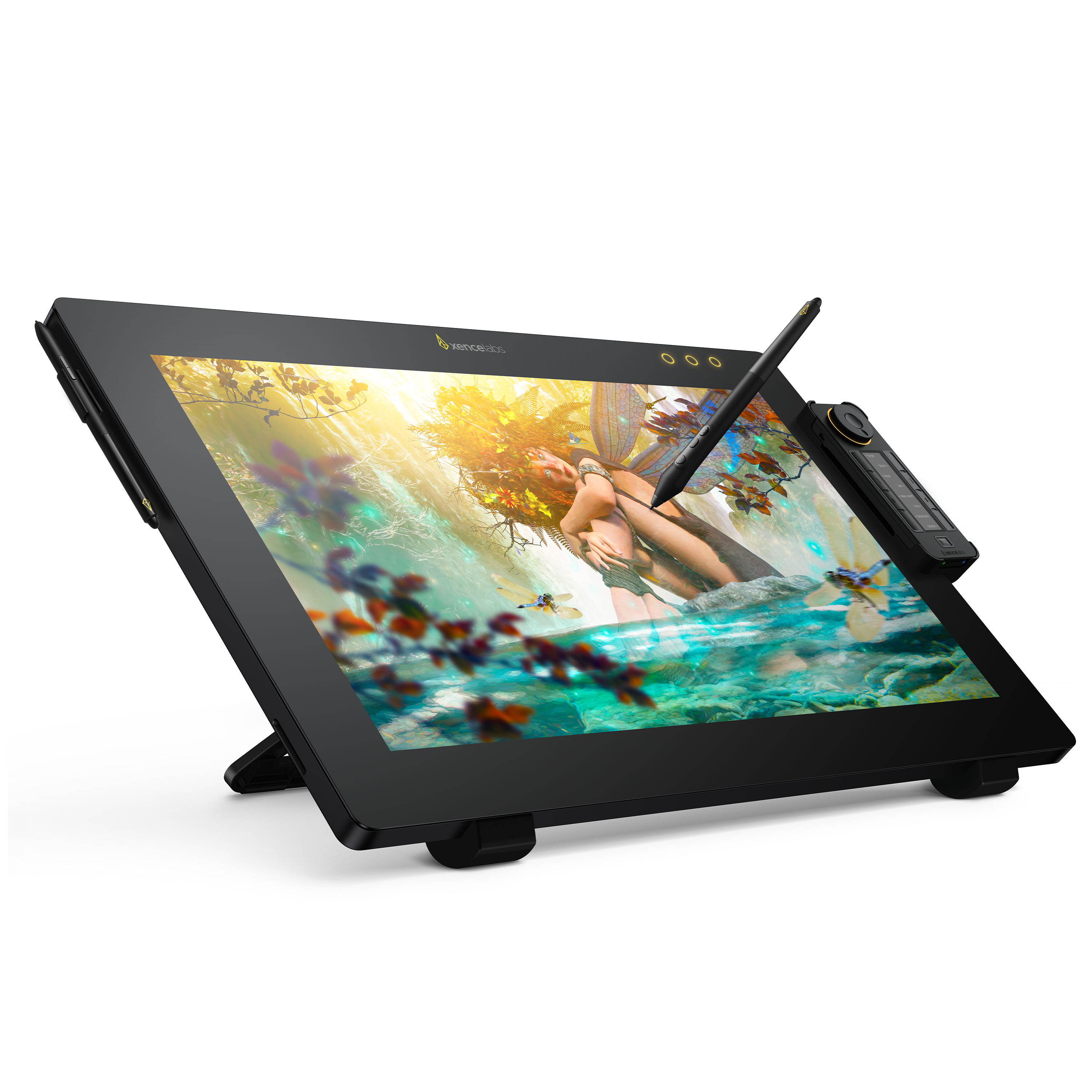

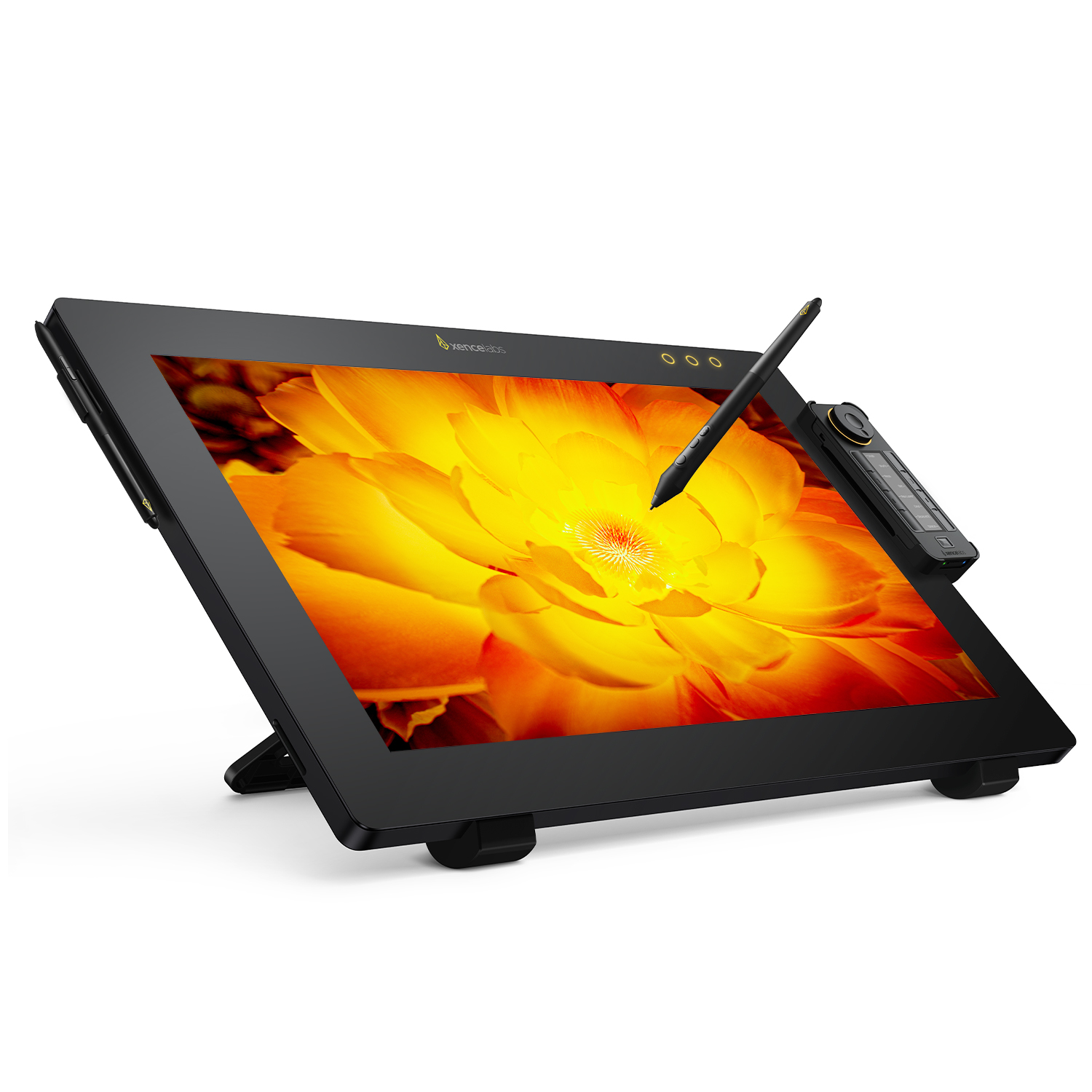

The Xencelabs Pen Display 24 is a large size digital drawing screen for creative professionals. It was designed to improve productivity, comfort, and workflow. Designed with feedback and input from industry leading artists. Xencelabs Pen Display 24 is the new choice for the creative community.

Key Benefits Include:

1. Excellent drawing experience with a 24” etched glass display carefully designed to feel like drawing on traditional media. Surface is continuous and uninterrupted by buttons or seams.

2. Pressure curve has been meticulously tuned to be beautifully responsive. Pen response is adjustable to match your drawing style.

3. Two different pen sizes are provided to fit different sized hands and preferences. One pen comes with 3-buttons while the other has 2 buttons. Each have an eraser.

4. Virtually no screen reflections or glare, even in well-lit rooms or where there are ceiling lights

5. Excellent color performance including Pantone® & SkinTone™ validation. Delivers 1.07 billion colors.

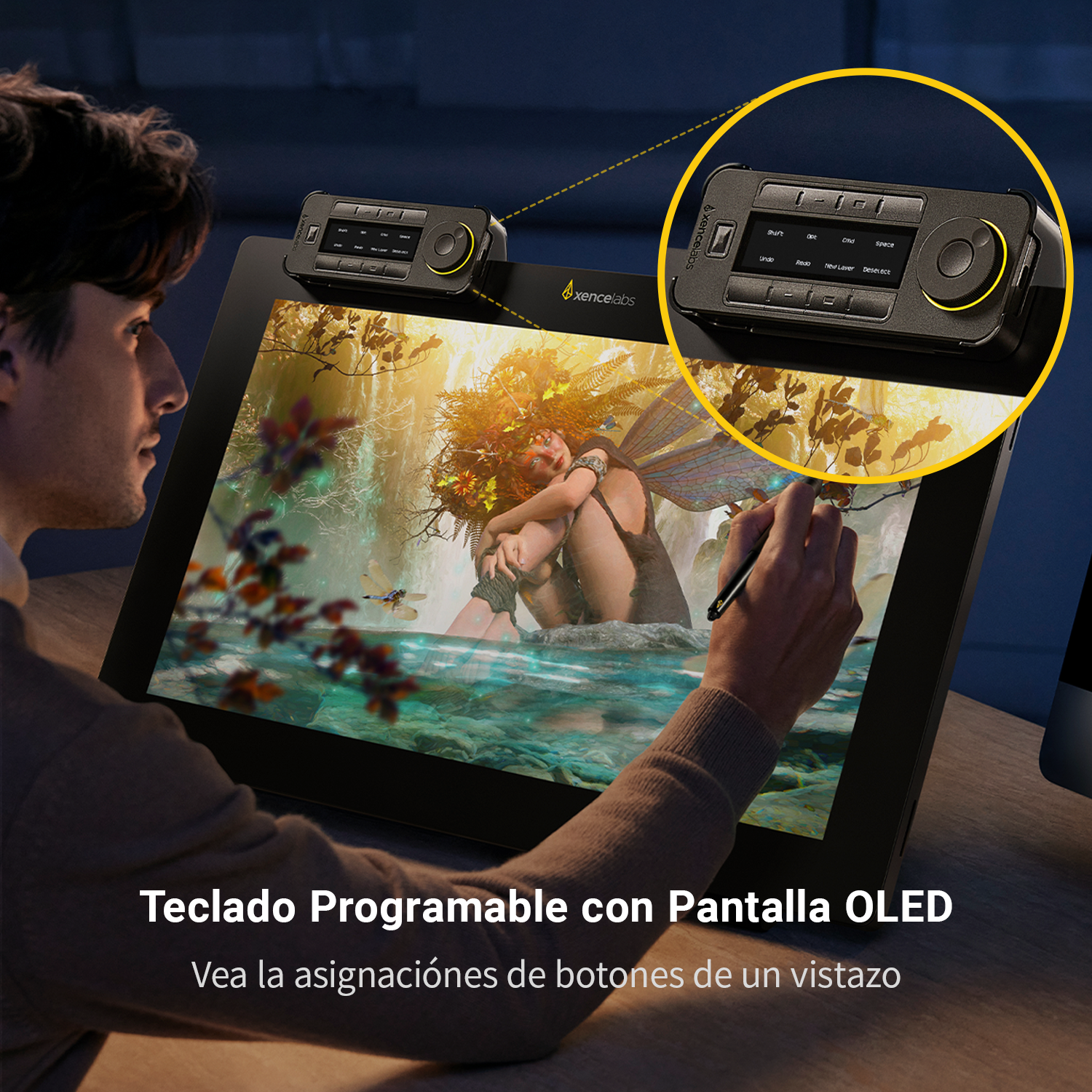

6. For improved productivity, it comes with the Xencelabs Quick Keys with OLED display and physical dial. Allows for up to 40 short-cut keys per application. Dial has 4 modes for zoom, rotation, brush size, and other functions.

Compatible Software:

•PC: Windows 11 ARM; Windows® 7 or later (latest service pack/build)

•Mac: OS X 10.13 or later (latest update)

•Linux - Ubuntu 14.04 or above, Debian 9.5, CentOS 7.0 or above, RedHat 7.0 or above

•USB-C port with DisplayPort Alternate Mode (UHD), or DisplayPort (UHD) and USB-C/USB-A, or HDMI 2.0 (UHD) and USB-C/USB-A

•Internet access for driver download.

Specification: Model Number

LPH2412U-A; Product SKU

XMPD24US; Product Weight

6.0kg (13.3 lbs); Product Dimensions

618.50 x 388.00 x 34.70mm (24.4 x 15.3 x 1.4 in); Product Color

Black; Stand

Xencelabs Tilt Stand, adjustable from 16 to 72 degrees; Vesa Compliant

100mm X 100mm / 3.9in X 3.9in Quick Keys (40 application specific customizable buttons in 5 sets of 8). Includes physical dial; Power Input Voltage

100 to 240 VAC, 50/60HZ; Power Output Voltage

100 to 240 VAC, 50/60HZ; Security

Kensington® Lock Port (lock purchased separately) - MicroSaver® 2.0; Temperature

5 to 40 degree C; Screen Size (measured diagonally)

23.8 in (60.5 cm); Active Area

527.04 × 296.46mm (20.75 x 11.7 in); Display Resolution

3840 x 2160 pixels; Uniformity compensation

Yes; Pixel Pitch

0.13725 ×0.13725 mm Surface Edge-to-edge tempered glass with Super-AG etching™; Touch

No; Brightness

330cd/m2 (typ); Displayable colors (maximum)

1.07 billion colors; Color Gamut Coverage Ratio

99% Adobe RGB (CIE 1931) (typ), 93% DCI-P3 (CIE 1931) (min) Pantone™ Validated and Pantone SkinTone™ Validated; Aspect ratio

16:9; Viewing angle

178° (89°/89°) H, (89°/89°) V(typ); Display technology

ADS (a type of IPS); Contrast ratio

1000:1 (typ); Pens

PH35-A(3 Button Pen v2 + eraser), PH36-A(Thin Pen v2 + eraser); Pen Technology

EMR, pressure-sensitive, cordless, battery-free; Pen Pressure Levels

8192 levels; Pen Tilt Angle

60 degrees; Pen Resolution

5080 lpi; Pen Switches

3 side switches (3 Button pen), 2 side switches (Thin pen) plus eraser on both; Replacement Nibs

10 Nibs v2 (6 standard, 4 felt); Ports

1 x USB C port (video and/or pen data), 1 x HDMI2.0, DisplayPort, 2 x accessory USB2.0 ports; EU_ENERGY_LABEL

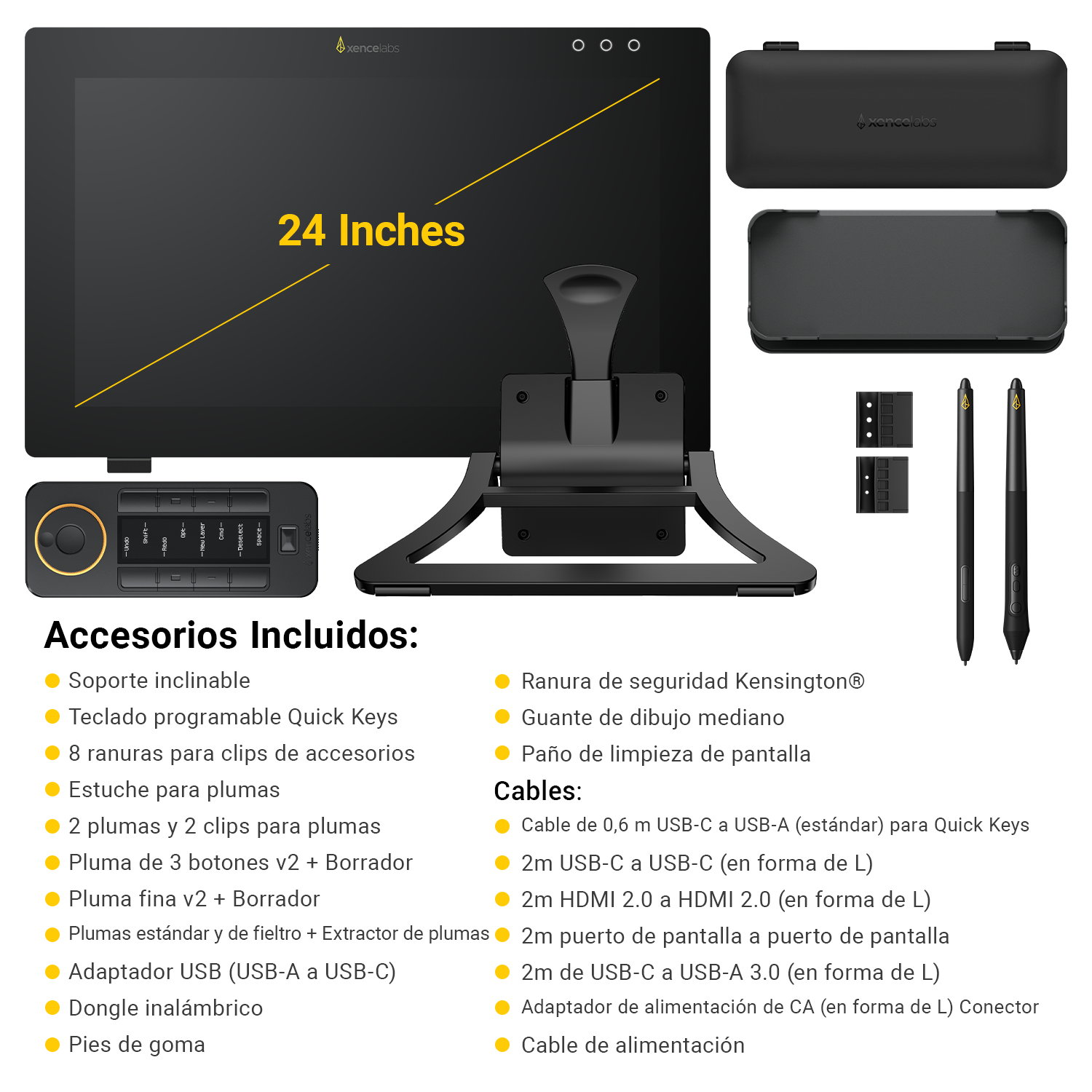

What’s in the Box: Pen Display 24 (XMPD24US); Tilt Stand; Rubber Feet; Pen Case; 3 Button Pen + Eraser v2 (XMCPH35); Thin Pen + Eraser v2 (XMCPH36); Wireless Dongle for Quick Keys (XMCDG); USB-A to USB-C Adapter; Standard Nibs v2 x 6pcs (XETPH35A); Felt Nibs v2 x 4pcs (XETPH36A); Nib Extracting Ring; 3 Button Pen Clip; Thin Pen Clip; Quick Keys (XMCQKFRES); Quick Keys holder; Drawing Glove (Medium) (XMCLGM); Sticker; Cleaning Cloth; 2m USB-C to USB-C (L-shaped) Cable; 0.6m USB-C to USB-A 3.0 (Standard) Cable; 2m USB-C to USB-A 3.0 (L-shaped) Cable; 2m Display Port to Display Port (L-shaped) Cable; 2m HDMI 2.0 to HDMI 2.0 (L-shaped) Cable; AC Power Adapter (L-Shaped) Connector; Power Cords

Reviews

5.0

Based on 3 Reviews

100%(3)

0(0)

Leave your review

Xe***

2025-03-08

Absolutely love it

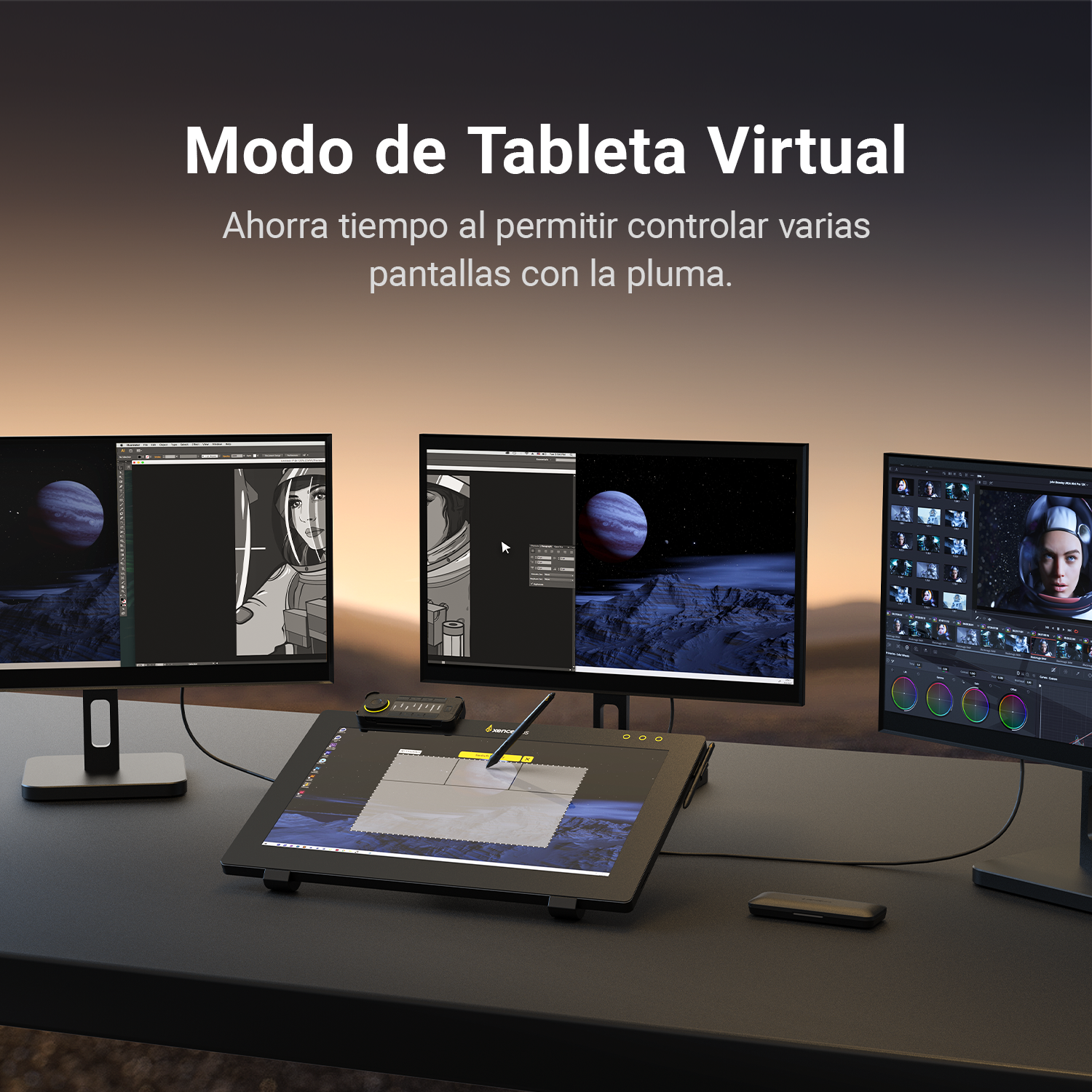

I love this tablet so much! I work in a bright room and don't have any issues with glare. I can let the sunlight stream into the room and still work, when my previous tablet I had to have the shades down and install curtains to go over the window as well. I love the pens. The remote with the screen is amazing and has completely replaced the need to have my keyboard close while I'm drawing, so I can get closer to my screen while I draw. And I love the feature that allows me to draw on and control the other monitor. It seems like a small feature, but it has improved my work flow so much. It also means that I can do the sketching process while looking up at my drawing and reference photo at the same time. It helps with back and neck pain to be able to look up while I draw, but I have the tablet at a lower setting still so it doesn't hurt my wrist. So well thought out and I love it. Never going back to wacom after this.

Reply(0)

Te***

2023-10-10

Amazing Cintiq Competitor w/ minor issue

1. The screen has a really nice gliding texture, so the pens run super smooth with a slight grit as if you're drawing on top of laser print papers 2. There's definitely some learning curve to get used to the touch buttons & the dialpad keys, but it's easily adjustable for whatever you need. I rarely have to use my keyboard when doing editorial edits (spacebar, return keys, backspace, tabs, etc. I just set it up on one setting) 3. The display screen is HD so I can see the slightest bit of whispy hair in an edit 4. I love the smooth dial mechanism, but I was surprised that the centre button also spins with the dial... 5. I also love that the package/set comes with everything you need for a home setup, so I don't need to worry about buying extra cables or other stuff... There are also rubber feet and a mounting stand so I can prop it up without worrying that it will slip / suddenly fall 6. It's also not loud, I was worried that the screen would overheat, but it functions extremely well for very long work hours. Just make sure you use a desktop instead of a laptop since it will drain a lot of battery.

However, as the title said, there was some delivery issue where it arrived with only one rubber foot (missing the other). It was definitely odd, cos even the CS guy helping was confused about how it happened. But they were kind enough to send in the spare part.

Again tho, money well spent on this screen tablet! I just hope it can accompany me for the long-term journey.

Reply(0)

Th***

2023-08-10

Great Start for Pen Displays at Xencelabs!

The display is good! I moved to this after having a wacom cintiq 22HD DTK for the last 5 years. This product does come with the quick keys device as well as both a thin pen and a 3-button thick pen. Both have erasers. The app allows me to customize more than I did on my old Wacom. Customer Service has been a pleasure to work with as well.

This product is great but I do have 1 issue. I would like the option to adjust the sharpness and brightness of the display. It is noticeably blurry and there is no clear way if any to adjust it.

Reply(0)

Q & A

Ask a Question

***

Goods

I dont actually have a problem. I am trying to leave a great review of this product of which I won at the ZBRUSH summit in 2023. This has been a piece of equipment I have recommended within my studio to 40+ employees, who all work in 2d and 3d. I work in the largest medical legal exhibit production company in the country, and have the highest respect for this workhorse product. I use it 8-9 hours a day, 5, sometimes 6 days a week (every week since the summit in 2023). This has been a pleasure to use and has exceeded all my expectations. I would like to give credit where credit is due. 2+years of non-stop working with it has made me a fan. Unfortunately, I am not allowed to leave this review because I did not purchase it. I can confirm winning it though, I was asked my name by your representative the day I won it. Anyways, great job - and much appreciated. Keep up the good work.

Xencelabs Mail

Thanks for the post and the kind words!

I want to answer

***

Goods

Does this Tablet support software like Zbrush, Maya, and 3DS Max ?

Xencelabs Mail

Yes, Xencelabs Pen Display 24 supports these softwares. All of our Xencelabs products will run just about any application you can download and install on your Mac, Windows, or Linux computer.

I want to answer

Ch***

Goods

I see it comes with different nibs for the pens. What is the difference between the two?

Xencelabs Mail

That is a great question. The Standard Black nib has less resistance and glides more easily across the surface of the Display. The Gray nib has a bit of a “bite” or tooth, as an artist would say. It has just a bit of resistance. It's much like using a 4B pencil on hot-pressed paper.

I want to answer

***

Goods

Is there a new stand that allows rotation to portrait orientation? This is shown on a recent video. When will this be available and what is the cost?

Xencelabs Mail

The stand you have seen in a few recent videos is our Muti-access stand, and its target release date will be in the second quarter of 2024. Please follow Xencelabs on social media for the most up-to-date release information on all of our new Xencelabs products.

I want to answer

***

Goods

Is it possible to switch between display inputs with a button on the Pen Display 24? This would make it easier to use with multiple computers.

Xencelabs Mail

To switch between input types, you will need to change the video cable. You can only connect one computer to the Pen Display 24 at a time.

I want to answer
