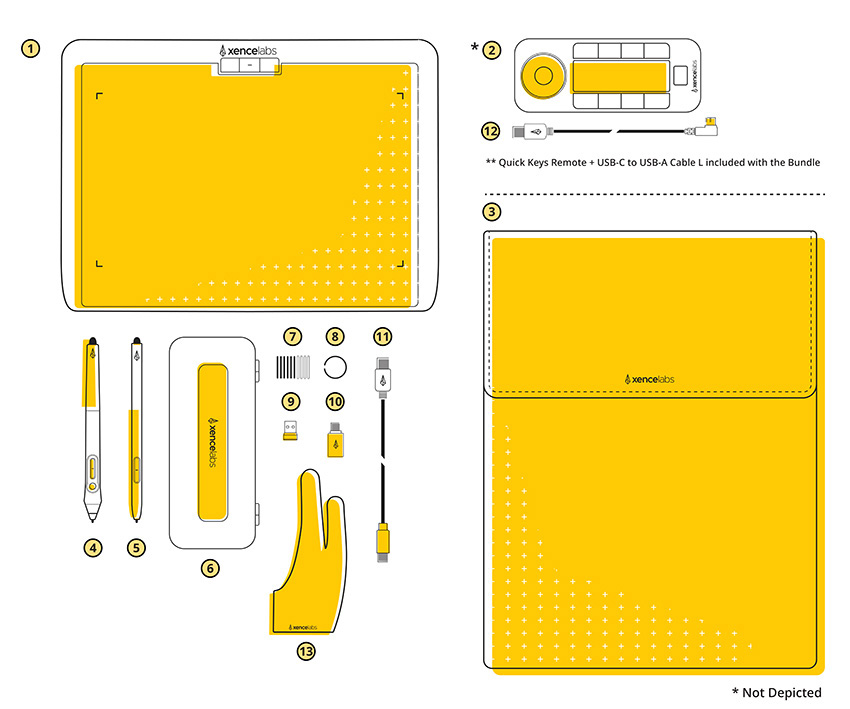

Pen Tablet
Quick Keys
Tablet Sleeve
3 Button Pen
Thin Pen
Pen Case
Nibs (6 standard, 4 felt)
Nib Extractor
Wireless Dongle
Adapter – USB-A to USB-C
USB-A to USB-C Cable
USB-A to USB-C Cable L
Drawing Glove
Warranty Sheet
Thank You Card
If any of these items are missing, please reach out to the Support Team at support.xencelabs.com They will be happy to send you the missing items.

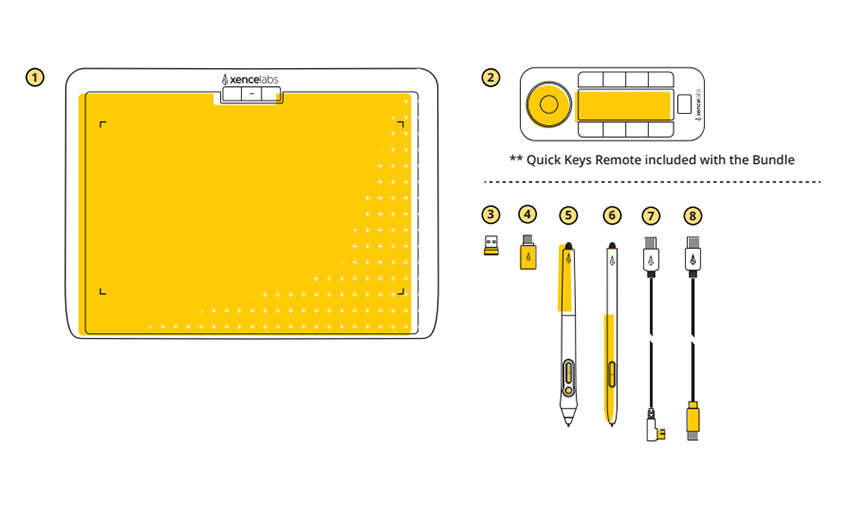

Pen Tablet
Quick Keys
Wireless Dongle
Adapter – USB-A to USB-C
3 Button Pen
Thin Pen
USB Cable L
USB Cable
The tablet will work without the driver but only has basic navigation functions, however, the Quick Keys requires driver installation. To get full benefits of the tablet we strongly recommend you download and install the driver.
Select your operating system below and download your driver.
Important note: The installation wizard requires wired connection to at least one of your devices during setup.
For Mac users, after installing the driver please restart your Mac for the driver to function properly.
IMPORTANT NOTE FOR WACOM USERS ON WINDOWS SYSTEMS
If, in addition to your Xencelabs device, you also use a Wacom pen display or pen tablet, please note:
For applications using Windows Ink (typically the default), you should be able to use both devices without issues.
If your applications require the use of WinTab, you must:
Exit the application you want to use.
Disconnect the USB port (or wireless adapter) of either the Wacom or Xencelabs device. This is because WinTab can only work with one device at a time.
Restart the application so it can find the device you want to use.
If you do not know if your application requires WinTab, please check with the software company. You can also just try using the application, but you may see random pen behavior if there are WinTab conflicts.

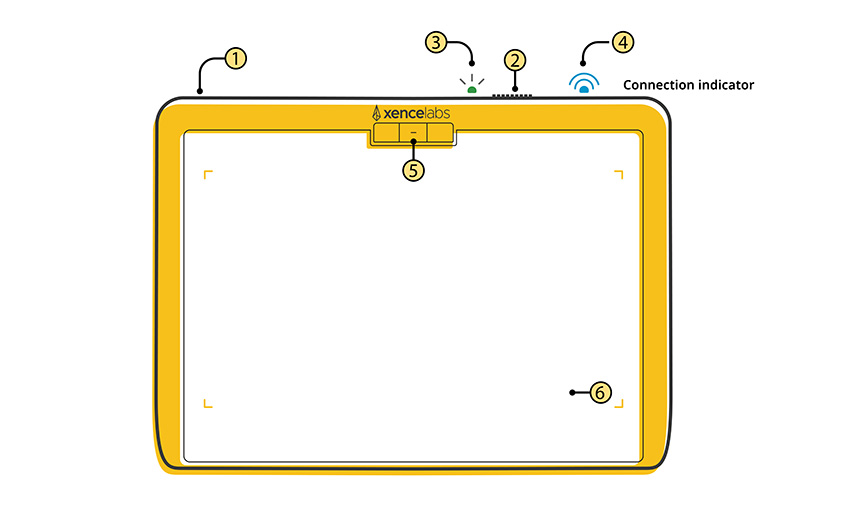

Kensington NANO lock slot
Slide and hold to turn on/off. Adjustable sleep times are in the settings panel.

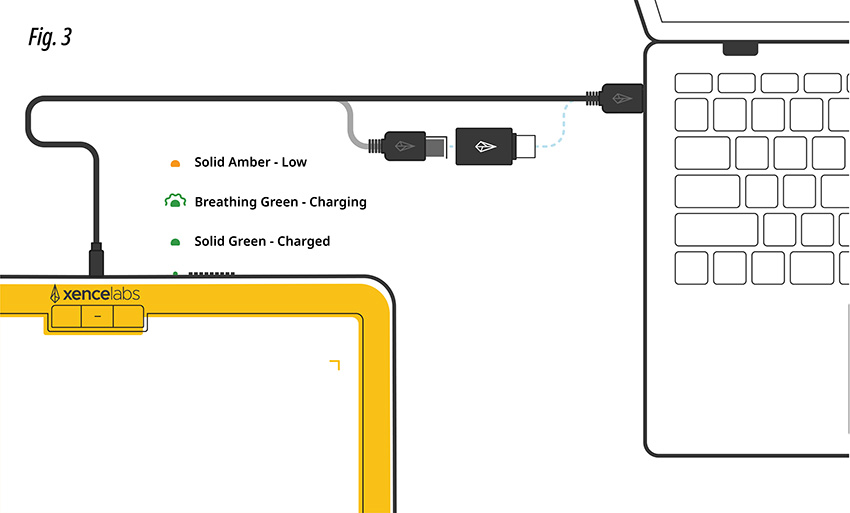

Solid green light indicates full charge, breathing green light indicates charging, solid amber light indicates low charge.
Blinking blue light indicates searching for connection, solid blue light indicates successful wireless connection and breathing blue light when connected via USB cable.
Three buttons at the top of the tablet give access to commonly used functions. All the buttons can be re-assigned in the settings panel.
Active area brightness and color can be changed in the settings panel.

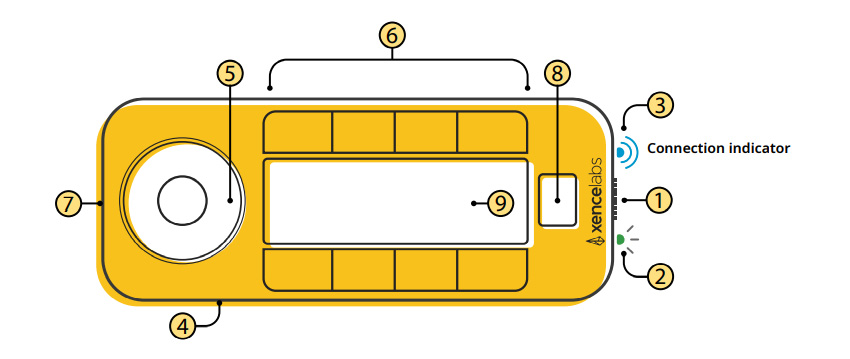

Slide and hold to turn on/off. Adjustable sleep times are in the settings panel.

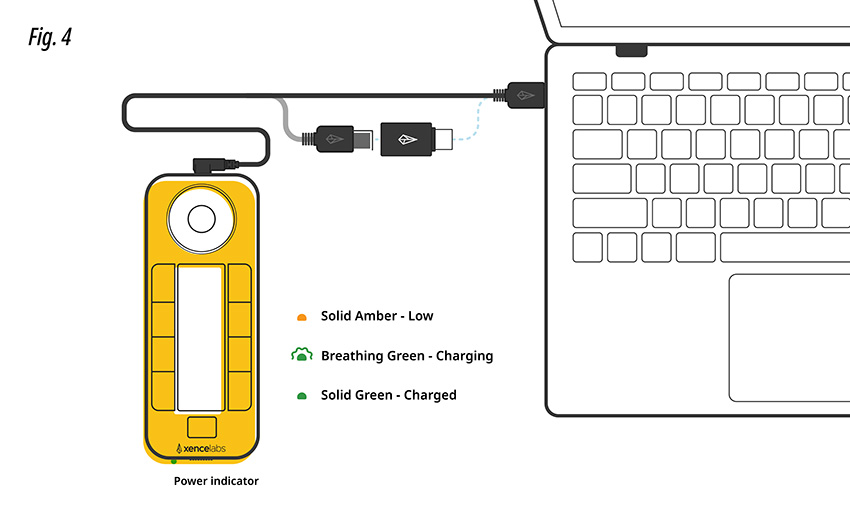

Solid green light indicates full charge, breathing green light indicates charging, solid amber light indicates low charge.
Blinking blue light indicates searching for connection, solid blue light indicates successful wireless connection and breathing blue light when connected via USB cable.
Kensington NANO lock slot
Customize dial with 8 dimmable LED color ring options.Center button switches between up to 4 different modes per application (ie. zoom, brush size, etc).
5 customizable groups of 8 keys per application for a total of 40 shortcuts.You can disable sets if they are not needed. For example, group your workflow activities into sets (ie. sketching, coloring, editing).
Charge the battery and/or connect to the computer.
Controls OLED display and allows you to switch between up to 5 shortcut groups.
Displays short cut key assignments.

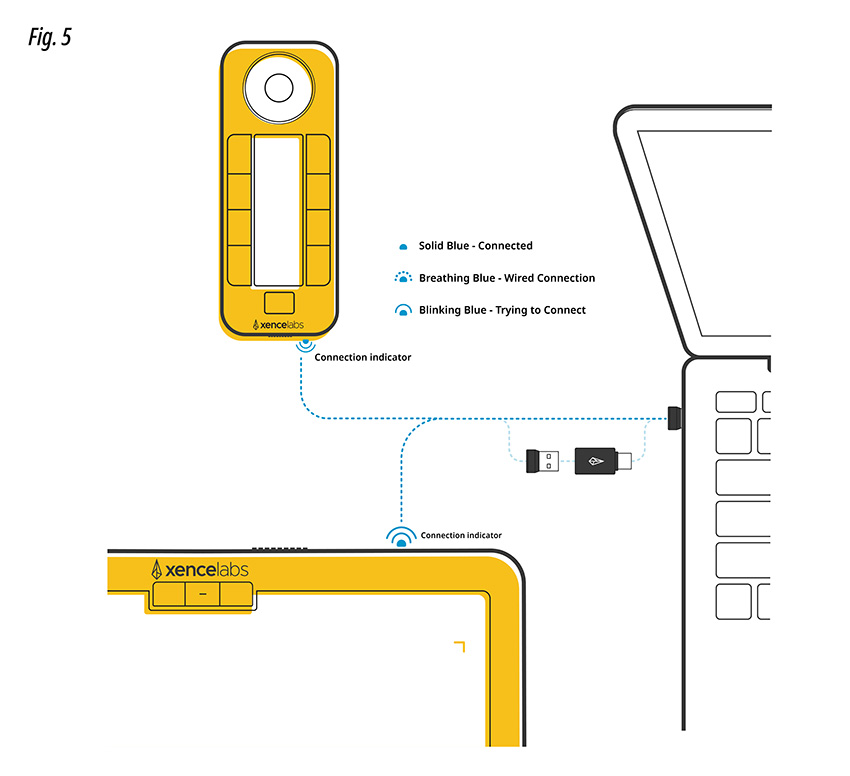

You can connect the tablet wirelessly with the provided dongle which establishes a wireless connection between the dongle and the tablet. We have provided a USB-A to USB-C adapter if you need it. If you bought the bundle with the Xencelabs Quick Keys, the single dongle will connect both the tablet and the Quick Keys. (Figure 5 )
